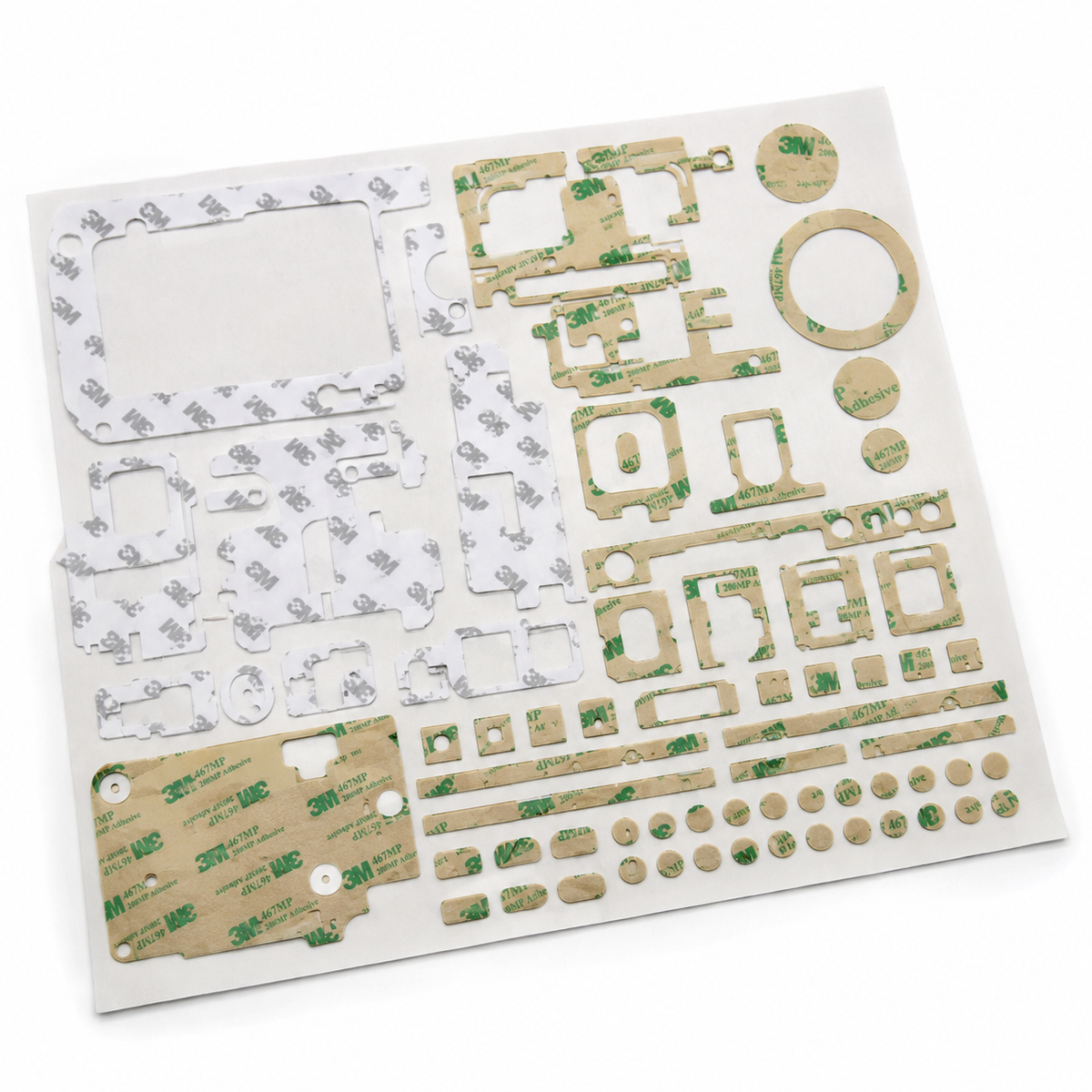

Custom Die-Cut Double-Sided Adhesive Tapes for Industrial Applications
Modern manufacturing needs bonding parts that are accurate, clean and easy to apply. Custom Die-Cut Double-Sided Adhesive Tapes are made to match the exact size and shape of a component, helping manufacturers avoid hand cutting, uneven placement and unnecessary adhesive waste. Anandha Print Solutions Pvt Ltd, Chennai supplies precision-converted adhesive parts for automotive, electronics, electrical, appliance, signage and general industrial applications.
What Are Custom Die-Cut Double-Sided Adhesive Tapes?
A double-sided adhesive material bonds two surfaces while remaining hidden between them. During die cutting, the adhesive tape is converted to the required profile using approved dimensions, drawings or samples. This creates a repeatable part that can be peeled from the liner and positioned directly onto the product.
Custom Die-Cut Double-Sided Adhesive Tapes are useful where the adhesive must follow a specific component shape. Openings can be provided around screws, displays, buttons, vents, connectors or other functional areas. The finished adhesive can therefore become part of the component design rather than simply being added during assembly.
Why Use Pre-Cut Adhesive Parts?
Manually cutting tape may be manageable for a few pieces, but it becomes difficult when hundreds or thousands of parts are required. Hand cutting can create differences in length, shape and position. It also adds another operation to the production line.
Using a custom die-cut adhesive tape allows operators to work with a finished piece that is already sized for the application. The operator can peel, position and press the part without measuring or trimming the tape each time.
This can support faster assembly, cleaner bonding and better repeatability. It can also reduce the chance of adhesive extending beyond the edge of a component.

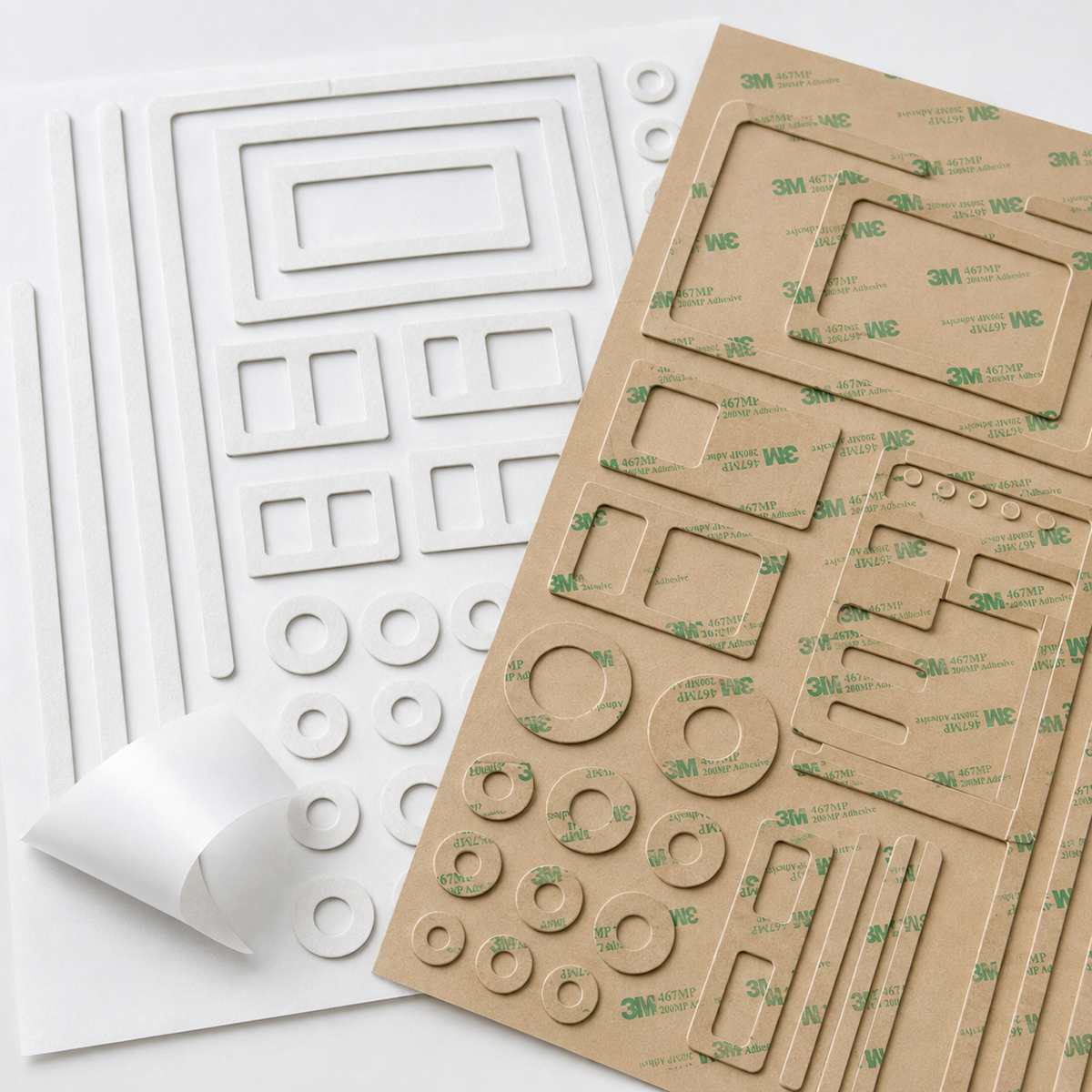

Die-Cut Adhesive Tape Manufacturer Chennai
Anandha Print Solutions Pvt Ltd works with customers who need converted adhesive parts for production use. As a Die-Cut Adhesive Tape Manufacturer Chennai businesses can approach for custom requirements, we focus on understanding the actual bonding surface, dimensions, liner requirement and application process before finalising the converted part.
Materials for Different Bonding Needs
No single tape suits every surface. Metal, glass, painted panels, powder-coated parts, foam, rubber and plastic can behave differently during bonding. The right adhesive construction should therefore be selected according to the surfaces, operating conditions and expected service life.

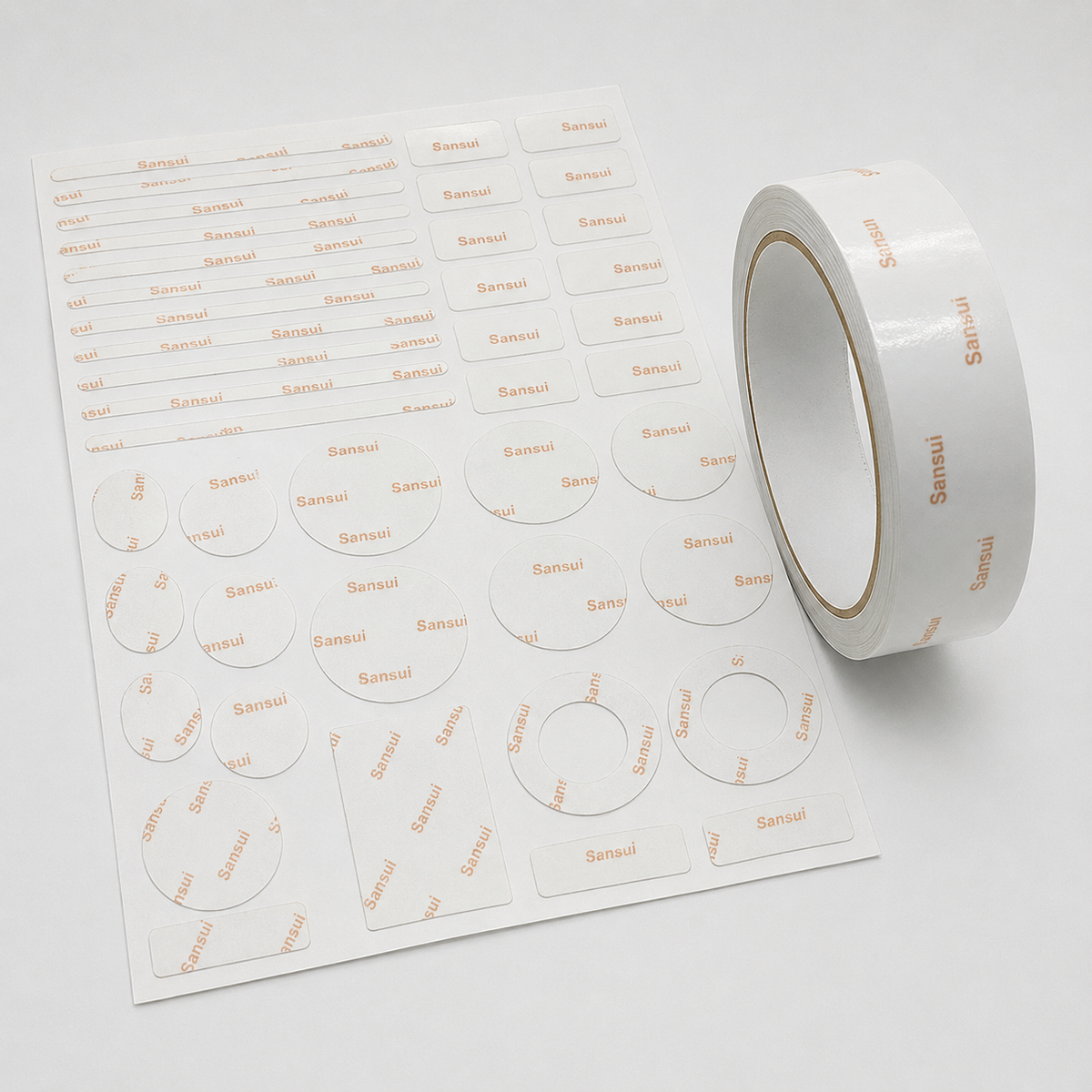

Common converting options can include tissue-based double-sided tapes, PET carrier tapes, transfer adhesives, foam tapes and other pressure-sensitive adhesive materials. A Die-Cut Tissue Tape construction is often useful for general mounting, light industrial bonding, lamination and applications where a thin conformable carrier is preferred.
The liner is also part of the converted product. It protects the adhesive before use and affects peeling, handling and feeding during assembly. For small or delicate parts, the liner layout can be designed to make removal easier. This is why material choice, liner choice and die-cut design should be considered together rather than as separate decisions.
3M Materials and Adhesive Transfer Options
Industrial customers may also specify recognised adhesive materials for selected applications. 3M Adhesive Die Cutting can be considered when a customer has already approved a suitable 3M tape or transfer adhesive for the component.

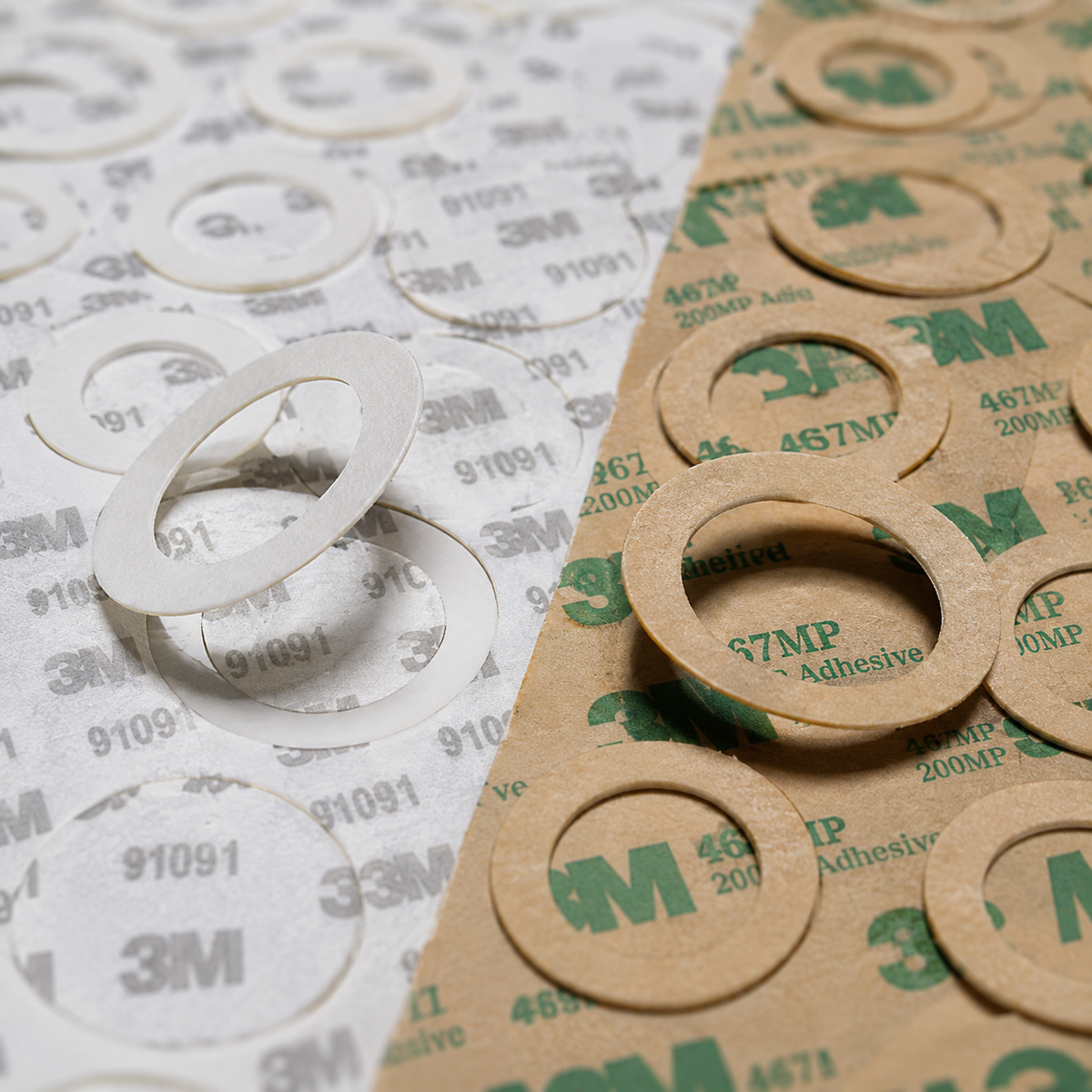

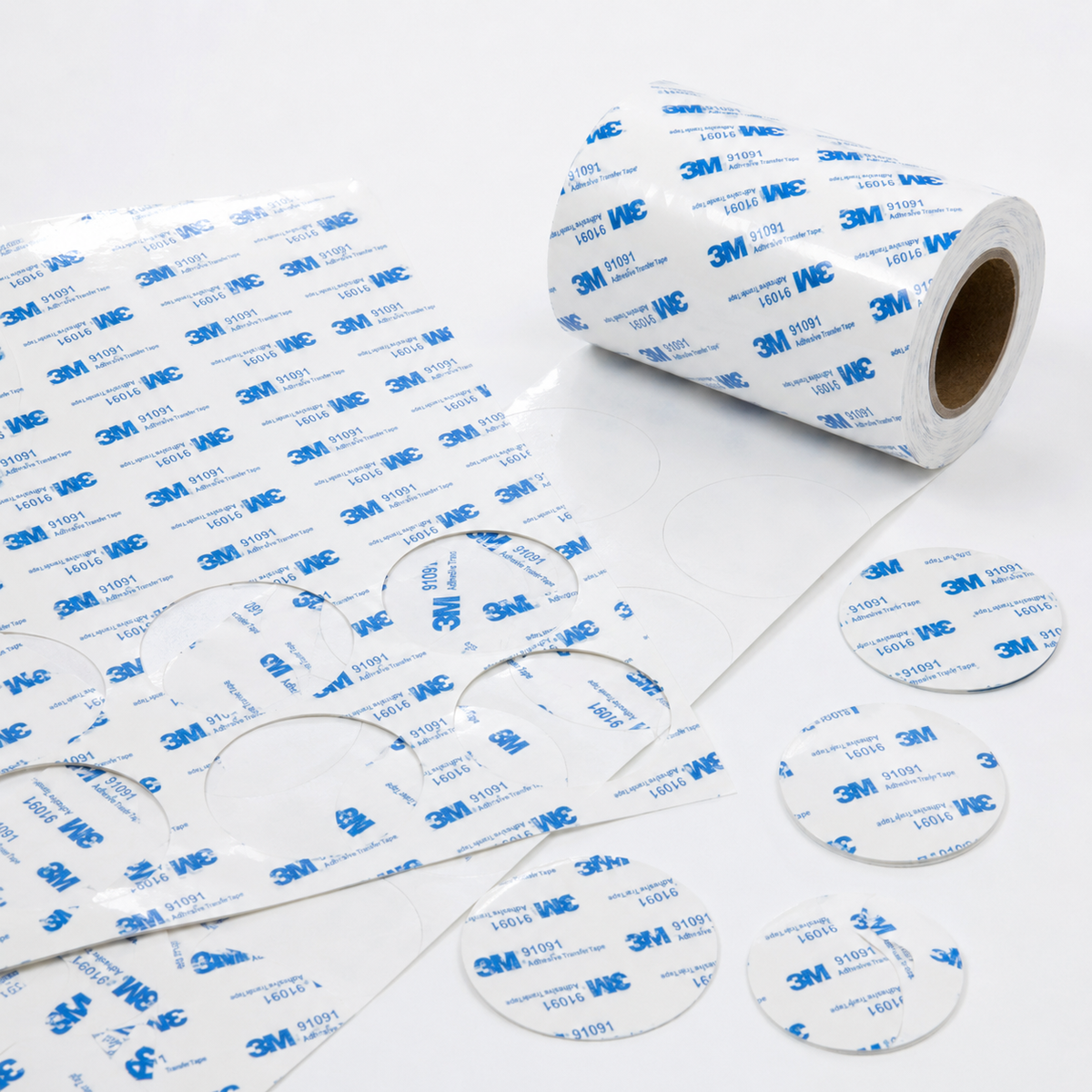

Materials such as 3M 91091 or 3M 467 may be considered for suitable applications based on the technical requirement and actual surface. The final choice should be made after reviewing the manufacturer’s data, substrate type and real production conditions.
Transfer adhesives are useful where a thin adhesive layer is required without a conventional carrier. They can be converted into discs, rings, frames and other profiles where controlled adhesive placement is important.

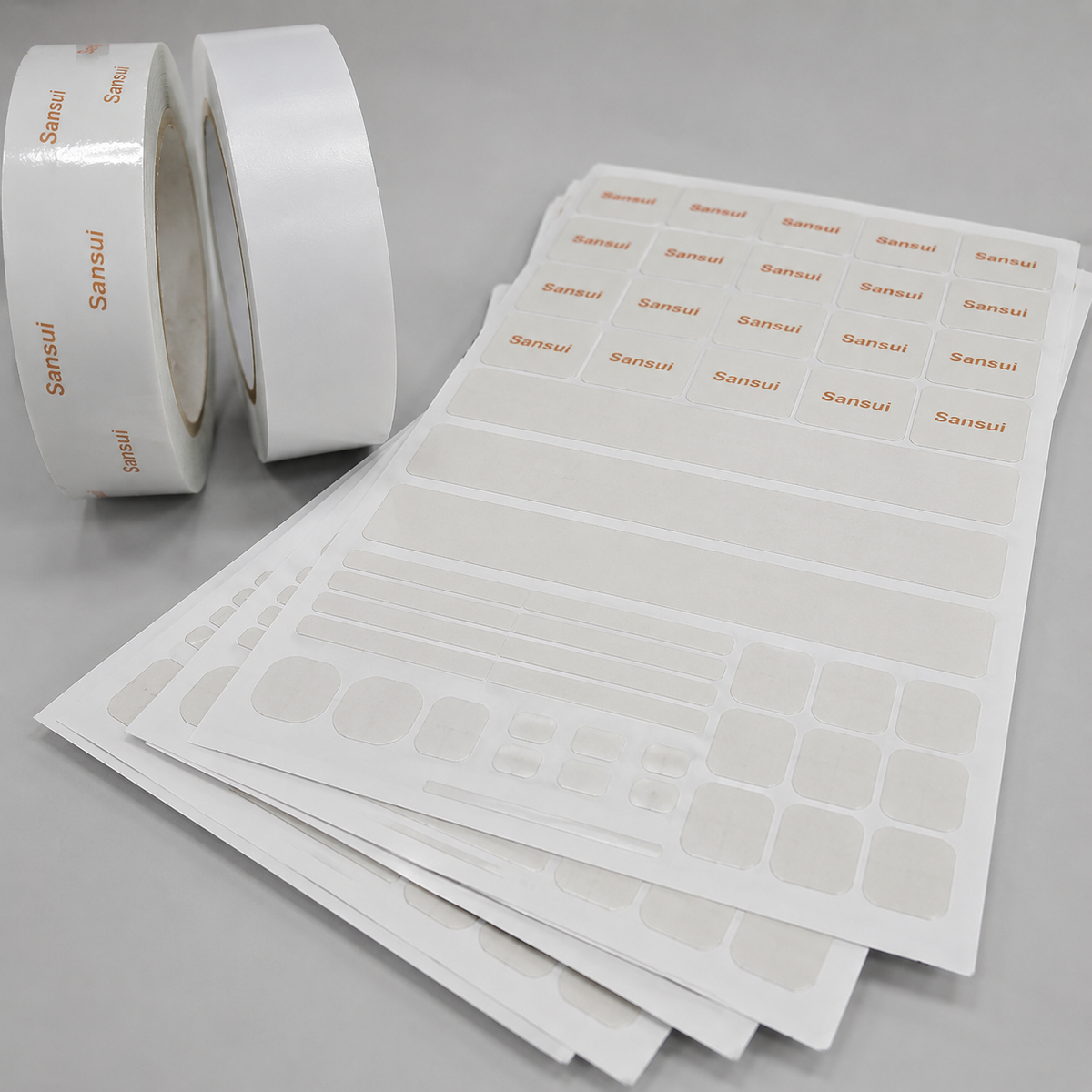

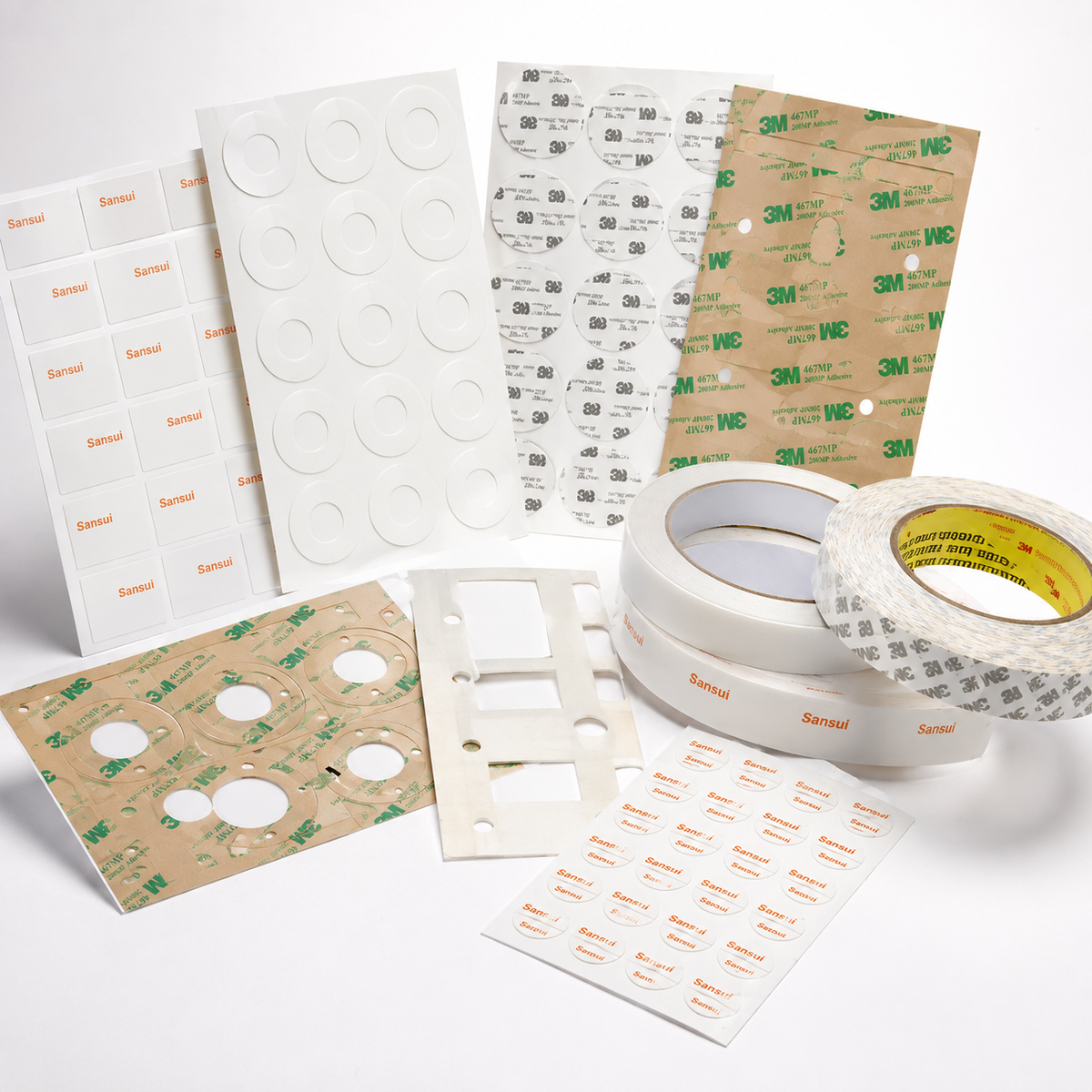

Custom Adhesive Die Cuts for Different Shapes

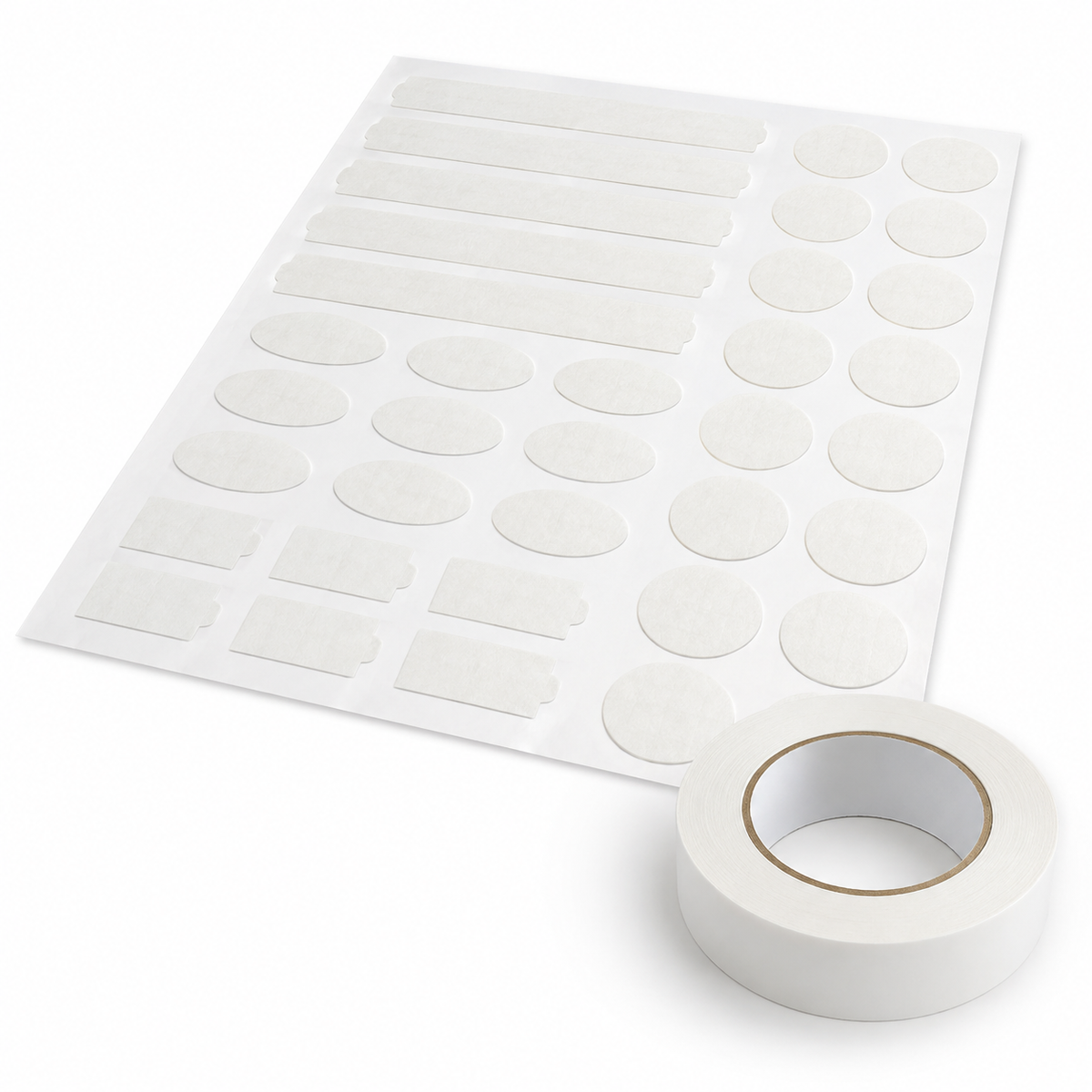

Custom Adhesive Die Cuts can be produced in many shapes depending on the component. Typical formats include round discs, washers, rings, rectangular pads, rounded-corner pieces, border frames, curved sections and narrow strips.
More detailed profiles can include internal windows, holes, slots and tabs. These features are especially useful for electronic components, control panels, printed parts and assemblies where the adhesive must avoid a functional opening.
Custom Die-Cut Double-Sided Adhesive Tapes can also be designed with a finger lift or extended liner. This gives the operator a dry area to hold while removing the release liner, reducing direct contact with the adhesive surface.

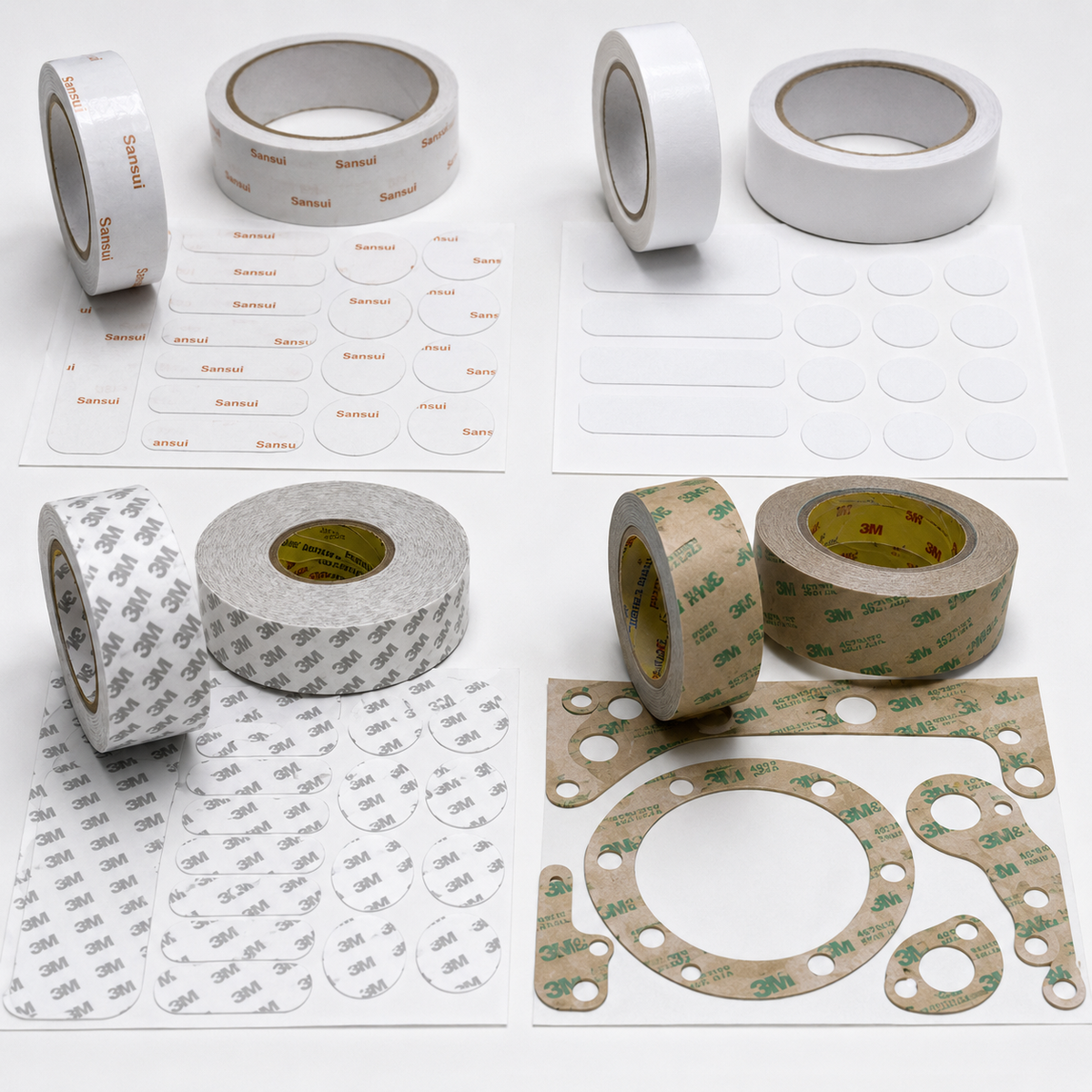

Kiss-Cut and Full-Cut Options
A kiss-cut adhesive tape format is produced by cutting through the adhesive construction while leaving the common liner intact. The individual pieces stay organised on the liner and can be peeled one at a time during assembly.
A full-cut part is separated completely through the adhesive and liner. This format can be preferred when individual pieces need to be packed separately or supplied as loose components.
The best cutting method depends on the part shape, thickness, quantity, liner and customer’s production process.

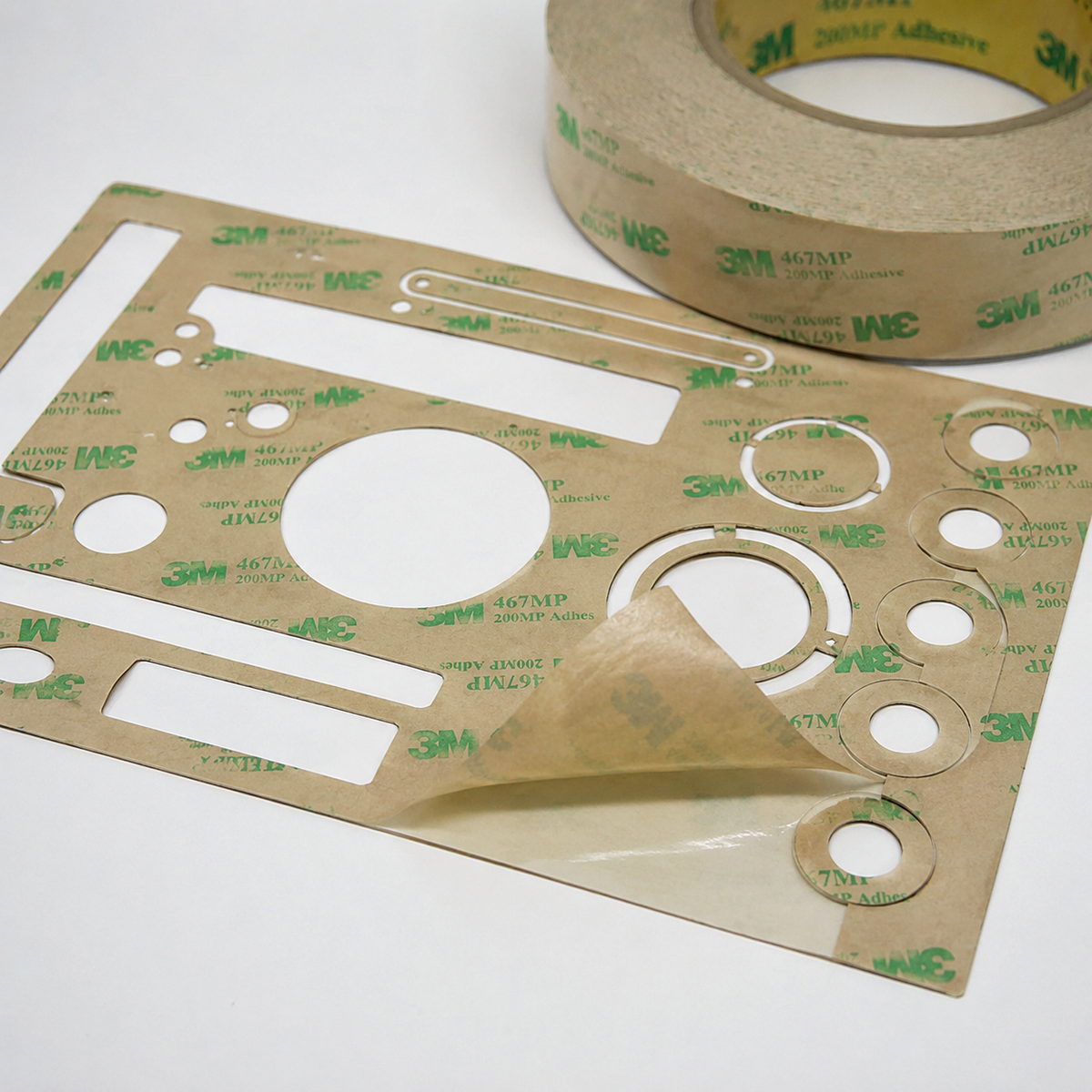

Double-Sided Tape Die Cutting for Production Efficiency
Double-sided tape die cutting can reduce the number of manual operations needed on an assembly line. When tape arrives in the correct shape, operators do not need to measure, cut and trim each piece.
A well-planned die-cut layout can also improve material utilisation. Parts can be nested efficiently on a sheet or liner according to shape and converting limitations, helping reduce avoidable waste.
Automotive Applications
Custom adhesive parts can be used in suitable automotive applications such as badges, emblems, trims, interior plastic parts, foam components, insulation pieces and decorative assemblies.
The bonding requirement may vary according to whether the part is inside or outside the vehicle, the type of plastic or metal involved and the temperatures the component may experience.
For this reason, tape selection should always be based on the actual component and service condition rather than appearance alone.
Electronics often need small and accurately positioned adhesive parts. Die-cut tapes can be used for selected display parts, insulating films, small panels, speaker areas, foam components and internal assemblies.
Precision cut-outs can leave open areas around cameras, connectors, switches or vents. Thin transfer adhesives and PET-based tapes may be useful where dimensional control is important.
Appliances, Signage and Industrial Equipment
Adhesive die cuts can also support the fixing of nameplates, decorative panels, printed overlays, foam parts, seals and other components used in appliances and industrial equipment.
For signage and display applications, hidden bonding can provide a clean front appearance without visible screws or rivets. The suitability of the adhesive will depend on the weight, surface, environment and expected service life.
Foam, Rubber and Converted Components
Double-sided adhesive can also be laminated to selected foam, rubber, felt or similar materials before converting. The combined construction can then be die cut as one ready-to-use part.
This may help reduce separate assembly steps where the customer would otherwise need to apply adhesive to a foam or gasket component manually.
Important Details Before Selecting a Tape
Before finalising Custom Die-Cut Double-Sided Adhesive Tapes, it is useful to review both bonding surfaces and the conditions in which the product will operate.
Customers should share the first and second substrate, surface finish, required dimensions, thickness preference, operating temperature, exposure to moisture or chemicals, indoor or outdoor use and approximate order quantity.
It is also helpful to know whether the bond needs to be permanent, removable or repositionable during assembly.
Testing on the actual production surface is recommended because real components can differ from laboratory samples in texture, coating, cleanliness and manufacturing condition.
Supply Formats
Finished adhesive parts can be planned in a format that suits the customer’s process. Depending on the material and design, pieces may be supplied as individual die cuts, kiss-cut sheets, liner-mounted sets or rolls.
The release liner can also be considered as part of the design. An extended liner or finger-lift area may make a small adhesive component much easier for an operator to handle.
Why Choose Anandha Print Solutions Pvt Ltd, Chennai?
The purpose of custom converting is not simply to create a different tape shape. The objective is to provide an adhesive part that fits the component and works efficiently during production.
Anandha Print Solutions Pvt Ltd, Chennai focuses on application-based converting. We review the drawing or sample, understand the required format and work towards a practical die-cut solution for the customer’s assembly process.
Whether the requirement is a simple tissue tape pad, a transfer adhesive ring, a narrow strip or a detailed frame with several openings, the converted part can be developed around the final application.
Send Us Your Requirement
If you need Custom Die-Cut Double-Sided Adhesive Tapes for industrial use, send us your drawing, sample or dimensions along with the surfaces to be bonded and the required quantity.
Anandha Print Solutions Pvt Ltd, Chennai can support custom die-cut adhesive tape requirements for customers looking for accurate shapes, suitable liner formats and production-friendly adhesive parts.
Share your application details with us to discuss material selection, sample development, die-cutting format and repeat production requirements.
